3D Optical Profilometers

3D Optical Profilometers

The Profilm3D® benchtop optical profiler and Zeta optical profilometers provide fast, easy, non-contact solutions for 3D surface topography measurements. Our portfolio of optical profilers supports a variety of measurement techniques, including white light interferometry, True Color imaging and ZDot confocal grid structured illumination. KLA Instruments can help guide you to the right optical profiler solution for your unique measurement needs.

Upcoming Events

View All

Sunday, September 17 – Friday, September 22, 2023

ICSCRM

Tuesday, October 24 – Thursday, October 26, 2023

The Quality Show

Wednesday, October 25 – Friday, October 27, 2023

National Nanotechnology Coordinated Infrastructure

Tuesday, November 14 - Friday, November 17, 2023

SEMICON Europa

Tuesday, November 28 – Thursday, November 30, 2023

MRS Fall

Sunday, December 10 – Thursday, December 14, 2023

Materials in Nuclear Energy Systems

Sunday, December 17 – Thursday, December 21, 2023

7th International Indentation Workshop

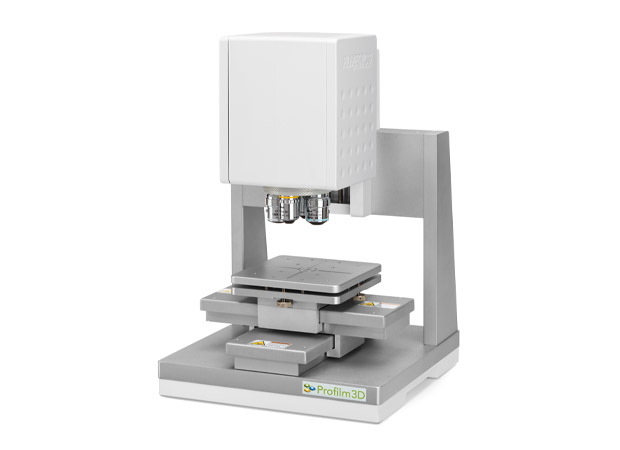

Profilm3D Optical Profilometer

Filmetrics® Profilm3D® Optical Profilometer

The Profilm3D® benchtop optical profiler utilizes white light interferometry, TotalFocus® infinite depth-of-field imaging, or Enhanced Roughness Mode to provide easy, non-contact measurement of 3D step heights, roughness, and other surface topography.

Learn more

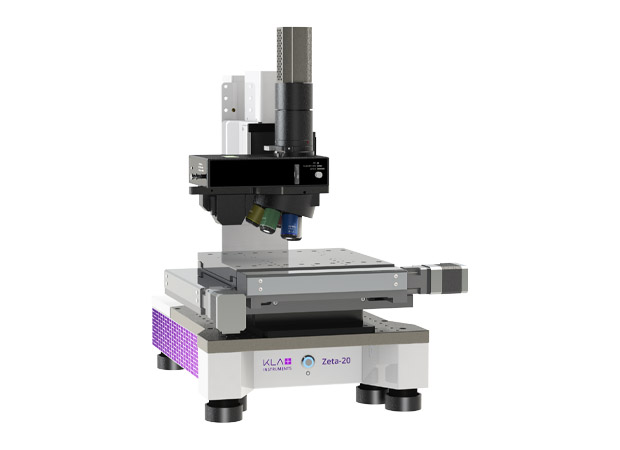

Zeta-20 Optical Profiler

Zeta-20 Optical Profiler

The Zeta-20 benchtop 3D non-contact optical profilometer features patented ZDot technology and flexible multi-mode optics for measurement of 3D surface topography, film thickness and automated defect inspection. The High Resolution HR configuration is designed specifically for advanced solar applications.

Learn more

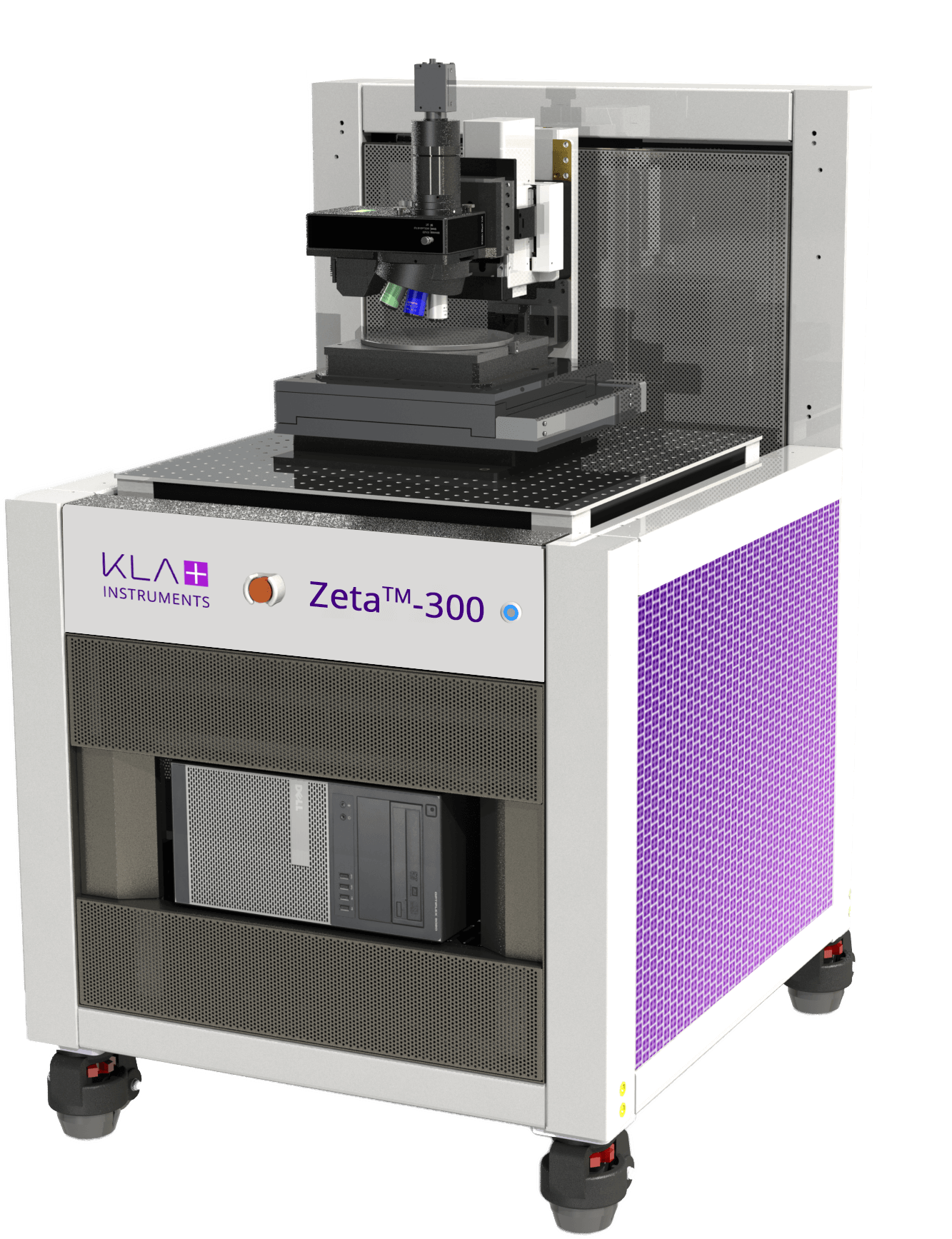

Zeta-300 Optical Profiler

Zeta-300 Optical Profiler

Building upon the proven performance of the Zeta-20, the Zeta-300 non-contact 3D optical profiler includes integrated vibration isolation and support for larger sample sizes to meet your R&D and production requirements.

Learn more

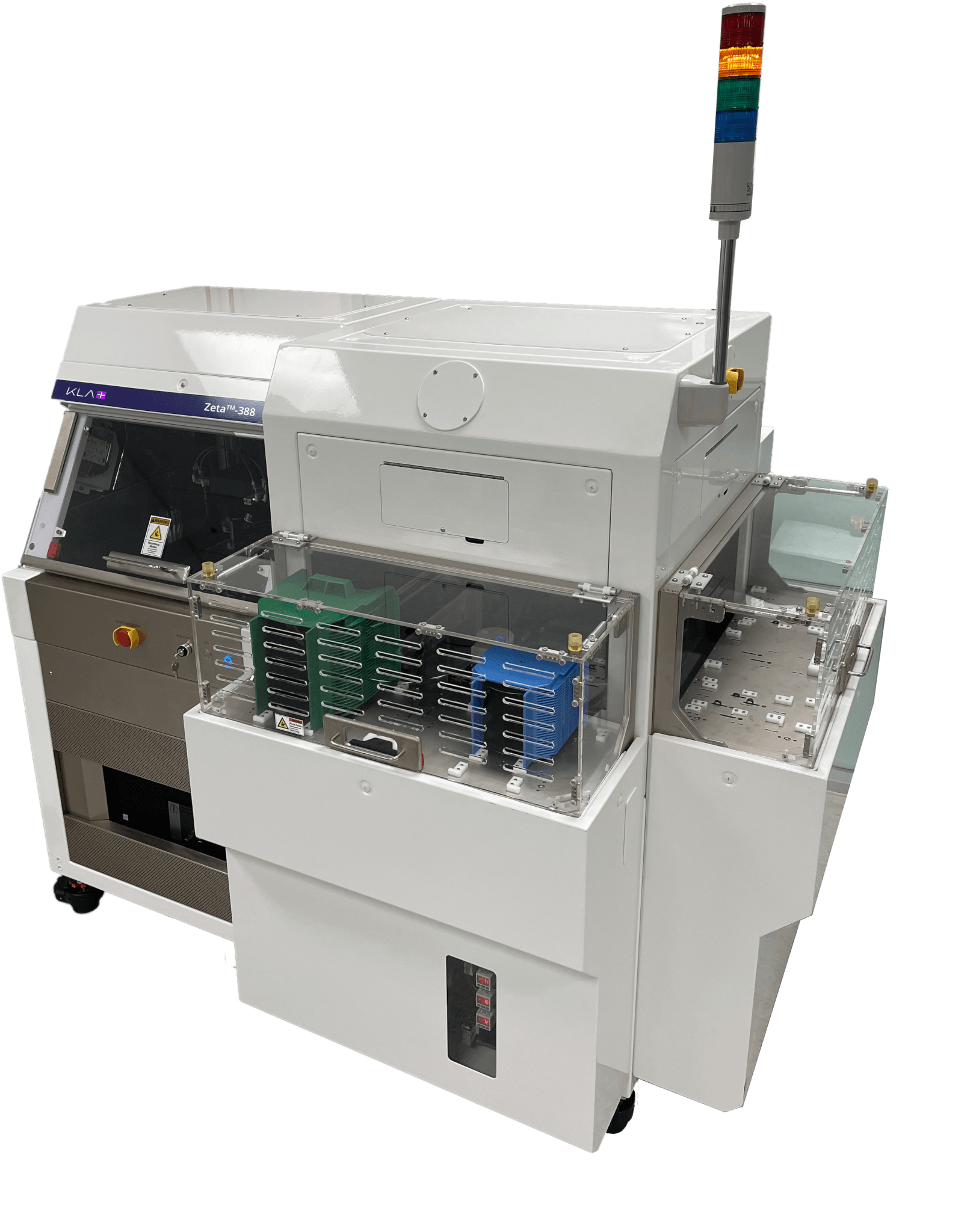

Zeta-388 Optical Profiler

Zeta-388 Optical Profiler

The Zeta-388 non-contact 3D optical profiler combines the Zeta-300 system with a cassette-to-cassette wafer handler, pattern recognition, automated data analysis and SECS/GEM to support production measurement requirements.

Learn more

Looking for stylus surface profilometers?

View More

Technical Literature

Browse application notes and technical papers from KLA Instruments Application Engineers and customers, covering a variety of use cases for KLA Instruments products.

Explore



Timeline of Innovation

The history of the optical profiler portfolio of KLA Instruments™ is a story of innovation from diverse origins. ADE launched the MicroXAM interferometer. Zeta Instruments developed ZDot and multi-mode optical profilers. Filmetrics® introduced novel, general-purpose white-light interferometers. These products came together into a diverse portfolio of optical profilometers, now unified under the KLA Instruments brand. Learn more about our rich history of innovation and how our tools continue to evolve to support your surface metrology requirements.

Learn More
